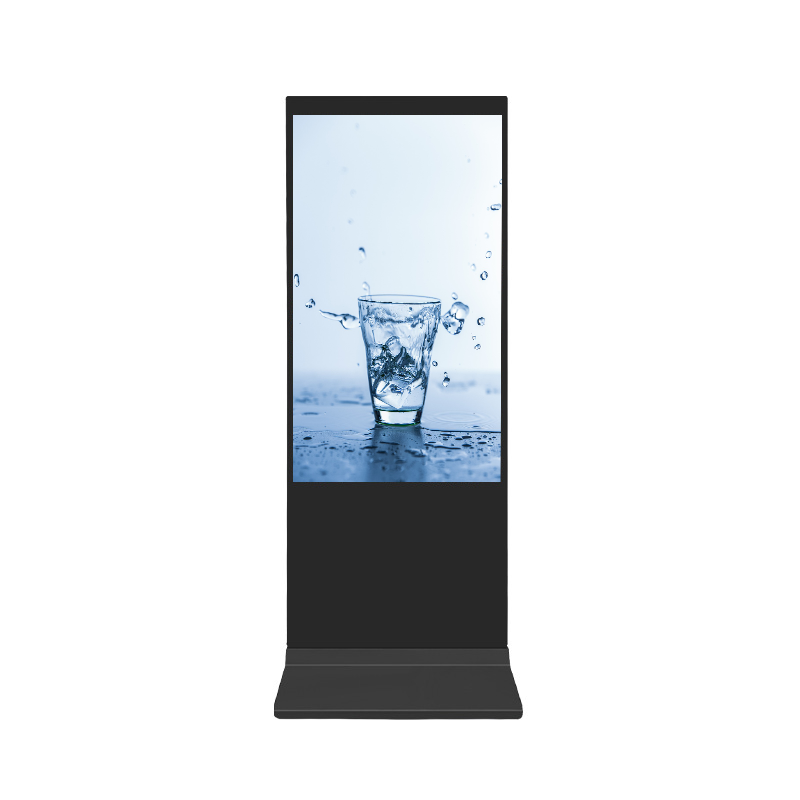

43-inch floor stand LED digital advertising display

43-inch floor stand LED digital advertising display

43-inch touch screen monitor Floor stand screen display advertising application

Commercial institutions: exhibitions, hotel supplies, large shopping malls, design media, specialty stores, franchise stores, hypermarkets, restaurants

Financial institutions: banks, securities, insurance companies, jewelry companies, pawn shops

Public places: subways, stations, gas stations, toll booths, bookstores, parks, exhibition halls, gyms, airports, museums, lottery centers

Public utilities: hospitals, schools, telecommunications, post offices, TV stations

  • Support 1920*1080P HD video and pictures
  • Support horizontal/vertical screen playback, split screen/full screen playback
  • Support scrolling subtitles, corner logo display
  • Program playlist management: playlist function, scheduled playback of specified time and files every day, scheduled insertion of advertisements, subtitles, etc.
  • Publish pictures or videos to the advertising machine in the same LAN through the terminal computer
  • Support direct publishing to the terminal through the mobile phone in the same LAN
  • Support Chinese and English menu conversion
  • 2-way USB 2.0 interface, support picture playback, music playback and video playback, etc., support 1080P HD input
  • Support breakpoint memory function
  • Support audio and video formats: support H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats
  • 1080P multi-video decoding MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other format



分类：

43 inch touch screen monitor parameters

Product specifications 43 inches
Model WD43AZ
Display ratio 16﹕9
Viewing angle 178（up/down/left/right）
Response time ≤8ms
Brightness 350cd/㎡
Color 1.07Ｍ
Contrast 2000﹕1
Resolution 1920*1080
Dot pitch 0.1615(horizontal)×0.4845(vertical)mm
Field frequency 56～75Hz
Line frequency 68KHz
Input voltage AC:90-264V～ 60/50Hz
Maximum power ≤90W
Display area Please refer to the dimension drawing
Appearance size Please refer to the dimension drawing
Advertising machine components
LED screen Brand new A-grade screen
Android configuration 3566 / Android 2G+16G configuration 9.0/11.0 system (optional)
Computer configuration/CPU I3/I5 I7 (optional)
Computer configuration/Running memory DDR4, default 4G/8G/16G/32GB (optional)
Computer configuration/Storage 128G/256G/512G/1T (optional)
Power supply AC: 90-264V～ 60/50Hz
Tempered glass High light transmittance tempered
Casing Sheet metal
Android technical parameters
Motherboard model Optional RK3288/ 3568/ Standard 3566 parameters
CPU Quad-core 64-bit Cortex-A55, up to 1.8Ghz
GPU ARM G52 2EE supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Memory Standard 2G (4G optional)
Built-in storage EMMC standard 16G (32G optional)
Display Support EDP/HDMI2.0/MIPI/LVDS
System Android 11
Play mode Supports multiple playback modes such as loop, timing, and insert
Network support 100M adaptive Ethernet, support WiFi/Bluetooth 4.0, 4G peripheral expansion
Multimedia Support 4K 60fps H.265/H.264/VP9 1080P 100fps H.265/H.264 video decoding
USB interface USB 1 each for 3.0/USB2.0, 2 built-in USB sockets
Serial port 6 TTL serial port sockets (can be changed to RS232 or 485)
LVDS 1 single/dual channel, can directly drive 50/60Hz LCD screen with multiple resolutions
EDP output Supports up to 1920*1080 output
HDMI output 1, supports 1080P@120Hz, 4kx2k@30Hz output
CTP interface 1-channel I2C touch screen interface
Audio and video output Supports left and right channel output, built-in dual 8R/5W amplifier
RTC real-time clock Support
Timer power on/off Support
System upgrade Support SD card/computer update
Working temperature -20°C-70°C, recommended 5℃～35℃ working temperature -10~+50℃
Exposed interface 12VDCIN /HDMIOUT /RJ45 /headphone jack /TF card slot /USBOTG /USB3.0 /OTG pop-up
Operating system WIN7/WIN10
Other Remote control, power cord, manual, key
